Pulse laser cleaning Machine

Brand:Sharelaser

Product origin:China

Supply capacity:200sets per month

Ask coupon, cheaper

laser cleaning machine combines light weight, easy operation, high-efficiency cleaning, non-contact, and non-polluting

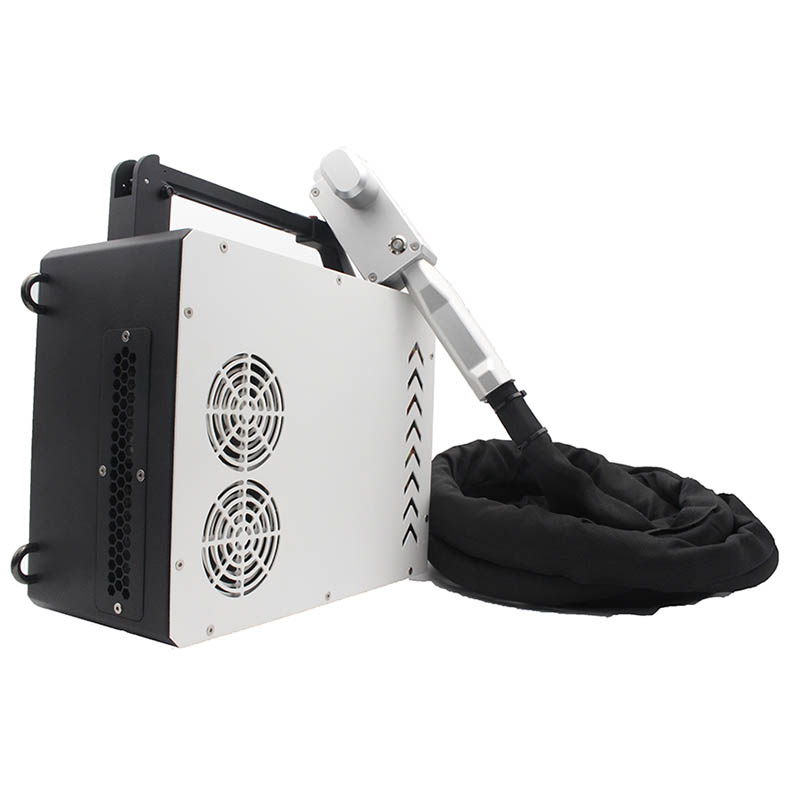

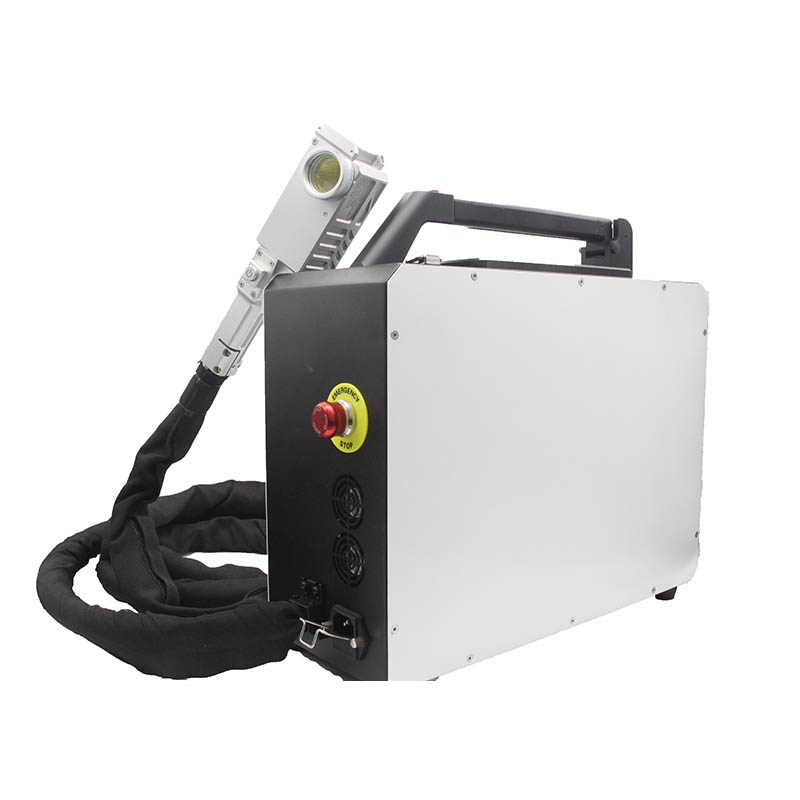

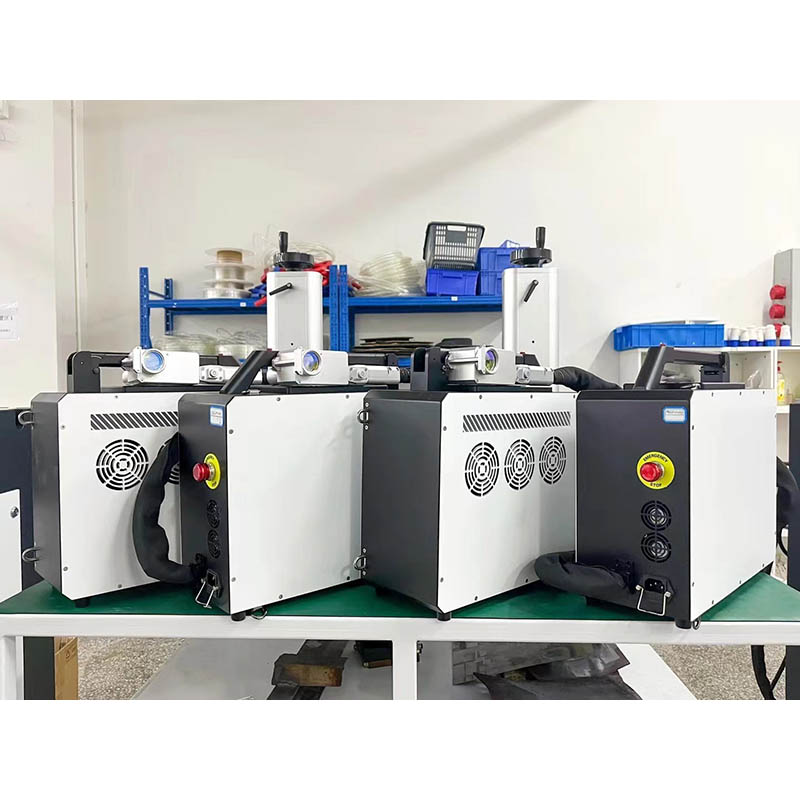

Product advantages (Backpack laser cleaning Machine):

50W/100W/200W backpack laser cleaning machine combines light weight, easy operation, high-efficiency cleaning, non-contact, and non-polluting.

Laser cleaning is a very disruptive technology to the traditional cleaning process. Laser cleaning is much more and faster than the other cleaning process. Compared with traditional cleaning methods such as chemical, sandblasting, dry ice, and ultrasonic.

Laser cleaning machine has the advantages of environmental protection in the cleaning process, high cleaning efficiency, high cleanliness, and no damage to the original material, it is handheld and portable design, easy to use just one operator required.

Using ultra-short pulse, ultra-high frequency mini fiber laser

Simple operation and efficient multiple laser cleaning patterns

Backpack lightweight design cabinet and minimal cleaning head

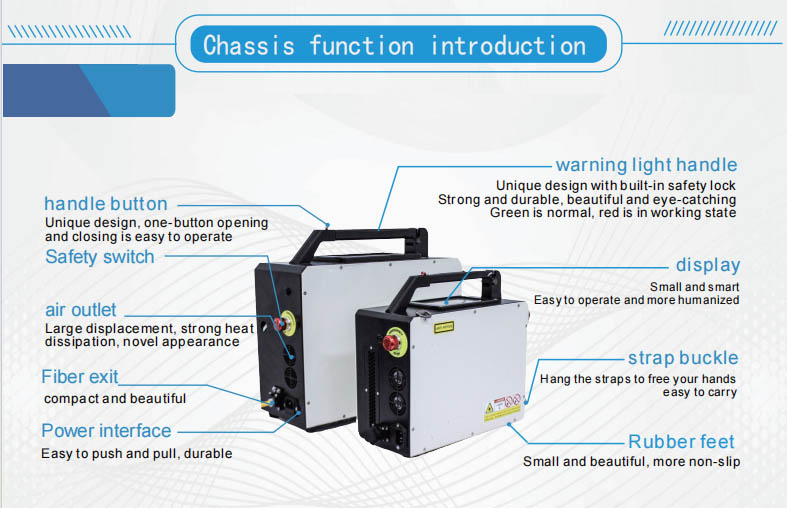

Features:

1. The chassis is equipped with a strap buckle, the strap can be carried on the shoulder, and the hands are freed.

2. Hand-held cleaning, exclusive mini laser head, durable and not tired, flexible and convenient. Less tiring operation, higher cleaning efficiency.

3. 10KG net weight, easy to transport and store

4. Single phase 110v and 220V, more energy-saving

5. Single person operation, no auxiliary equipment required, saving money and labor

6. The system is stable, easy to control, and has a service life of up to 50,000 hours, which is cost-effective.

7. High cleaning precision, nano-level controllable, no damage to the substrate.

8. Green and environmental protection, no secondary pollution.

Application areas:

Metal surface cleaning, rust removal; Removal paint of metal surface; Pretreatment of welding surface cleaning; Rubber mold residue cleaning, ship industry, auto parts, rubber mold, high-end machine,tire mold and others.



Technology parameters

Laser power

50W

100W/200W

Center wavelength

1064nm

1064nm

Power range

10-100(%)

10-100(%)

Pulse repetition rate

45-170KHz

20-200KHz

Pulse width

100±10ns @45kHz

180±10ns @65kHz

Beam quality(M2)

1.6

1.6

System power supply requirement

220V (110V optional)

220V (110V optional)

Power Consumption

350W

550W

Operating temperature

10-40

10-40

Machine dimensions

318*285*127mm

359.5*380*152mm

Machine weight

7.8kg

10.5kg(100w);  17kg(200w)

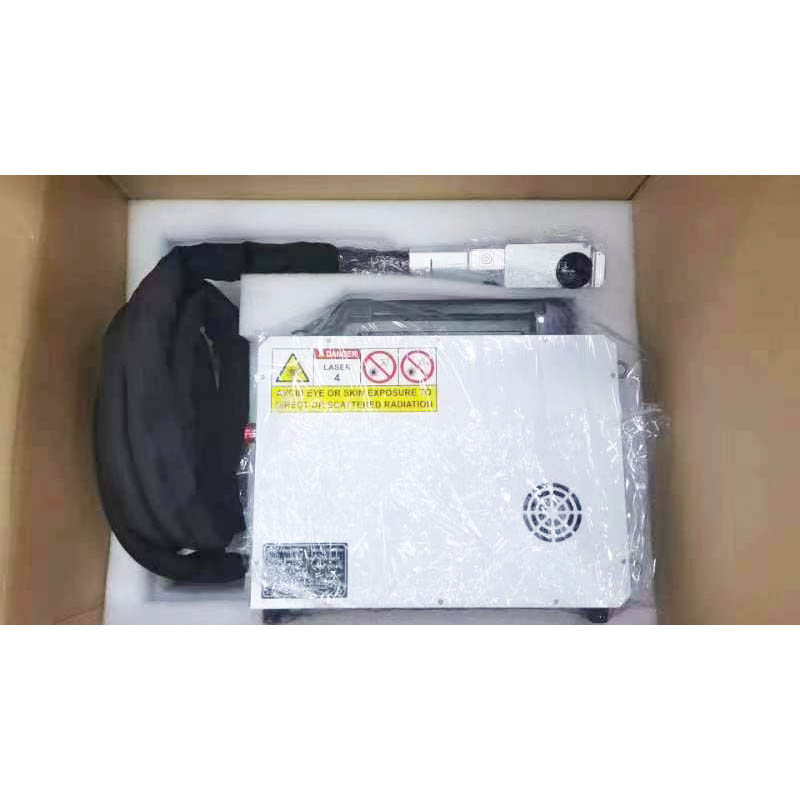

Packing wooden box size and weight

55x45x44cm, 17kg

65x55x45cm, 23kg(100w); 30kg(200w)
